Six processes, one plant

A 10,800 m² plant in Rui’an, Wenzhou, where moulds are made and the parts are cast, pressed, moulded, finished and assembled before they are packed as a set.

Plant area
10,800m²
Processes in the plant
6
Export markets in the catalogue
3Europe, Middle East, Southeast Asia

What happens to a part here

In the order the work moves through the plant

  1. 01Mould developmentDies, moulds and fixtures are made before a part goes into production, so a new handle body or bracket does not wait on an outside tool shop.
  2. 02StampingPlates, brackets, stays and transmission profiles are punched and formed from sheet.
  3. 03Die castingHandle bodies, hinge parts and lock components are cast in alloy.
  4. 04Injection mouldingShims, support blocks and plastic parts are moulded in-house.
  5. 05Surface finishingThe finish a buyer specifies: anodised, powder-coated or plated, in the colour agreed for the order.
  6. 06AssemblyParts are assembled into sets, checked and packed by window type for export.

Checking, at three points

Quality here is a set of checks in the line, not a poster on the wall. Parts are checked when they arrive, while they are being made, and again before the set is boxed.

Where a buyer specifies a standard or a test method, tell us with the order — the check is set up for that order.

Inspection bench at the plant, with parts measured against a drawing

Incoming material

Castings, sheet and bought-in components are checked before they enter the line.

In process

Inspectors check parts during production rather than only at the end, so a drifting dimension is caught while the run is still running.

Before packing

Assembled sets are checked against the configuration sheet for the window type before they are boxed.

Inside the plant

Catalogue photographs

Assembly line with staff fitting handles and lock boxes
AssemblyHandles, lock boxes and rods fitted to the configuration sheet
Finished goods warehouse with packed cartons on racks
Finished goodsSets boxed and labelled for export
Packing area with cartons and packed hardware
PackingPrivate-label cartons and inner packing on request

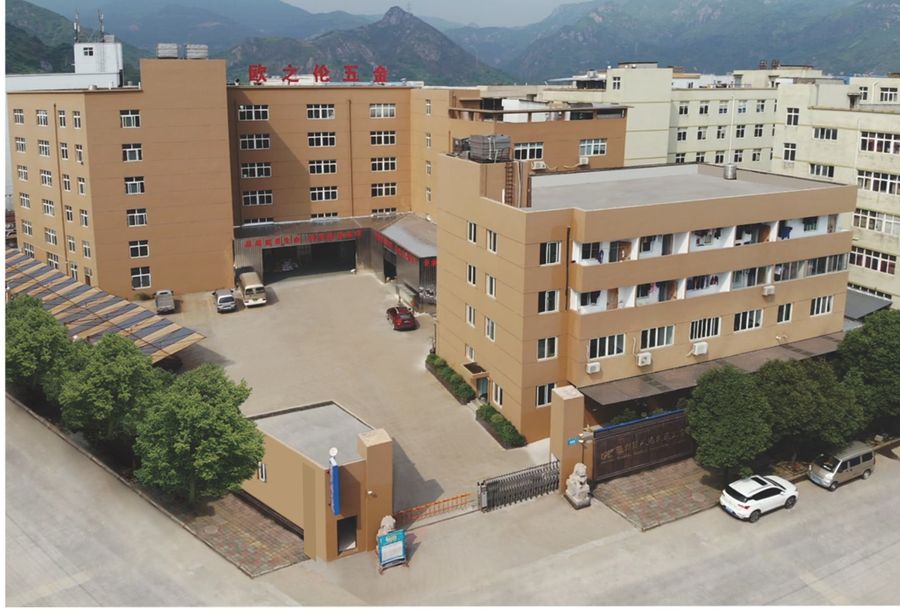

The factory building in Rui'an seen from the road
The plantXingluo Road, Rui’an — 10,800 m²

Bring us a window drawing

Send the profile, the sash size and the parts you already have. We will tell you which set fits and what has to change.
