Friction stay, 18 inch
- Size / load
- Max 1400 × 900 mm, 72 kg
- Material
- Stainless steel 304
- Used in
- Open-out side-hung, Top-hung
Stays & friction stays
Outward-opening sashes hang on friction stays, and the stay — not the lock — sets how big the sash can be. The catalogue prints a size and load range per stay, and the stainless grade behind the A / B suffix.
Representative models
OHL.HC-200B-14
OHL.HC-200B-14Friction stay, 14 inch
- Size / load
- Max 1000 × 700 mm, 57 kg
- Material
- Stainless steel 304
- Used in
- Open-out side-hung, Top-hung
OHL.PHC-0130B-16
OHL.PHC-0130B-16Friction stay for PVC profiles
- Size / load
- Max 1700 × 700 mm, 38 kg
- Material
- Stainless steel 304
- Used in
- UPVC

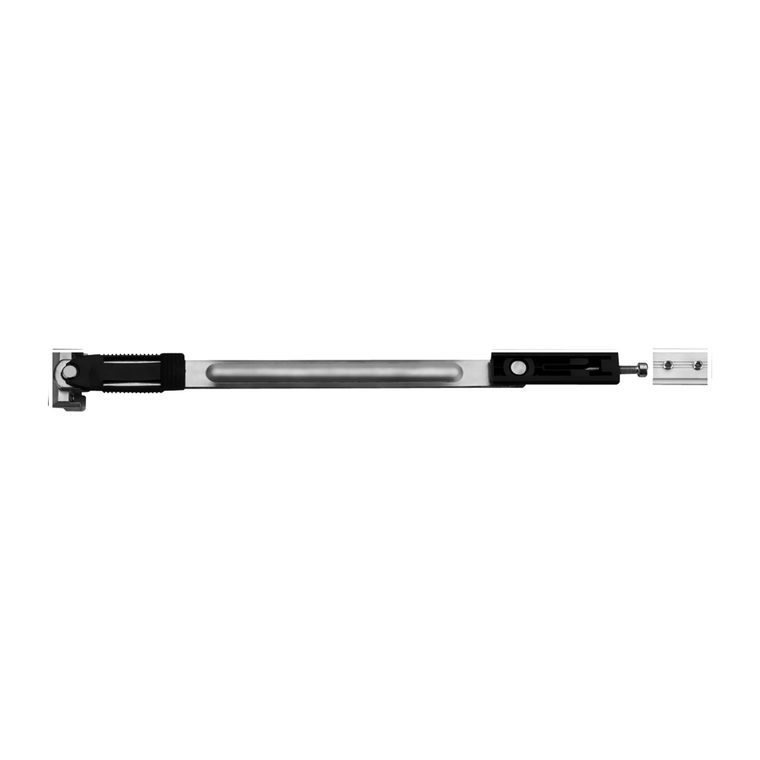

Side-hung window limiter
- Size / load
- For sashes up to 500 mm wide
- Material
- Stainless steel 304
- Used in
- Open-in side-hung, Open-out side-hung
- Note
- The plate and the link bar separate for cleaning
Notes for this range
- Suffix A is stainless 201, suffix B is stainless 304.
- The stay size sets the maximum sash height, width and weight.
- Side-hung window limiters restrict the opening angle and can be separated for cleaning.
Used in these window systems
- Open-in Side-hung — NP200 set
- Open-out Side-hung — WK100 set
- Top-hung — MQ100 set
- UPVC — NPLSL100 set
Single parts or a whole set
Distributors order by code and quantity; fabricators send the window and take the set. Both are quoted the same way.
