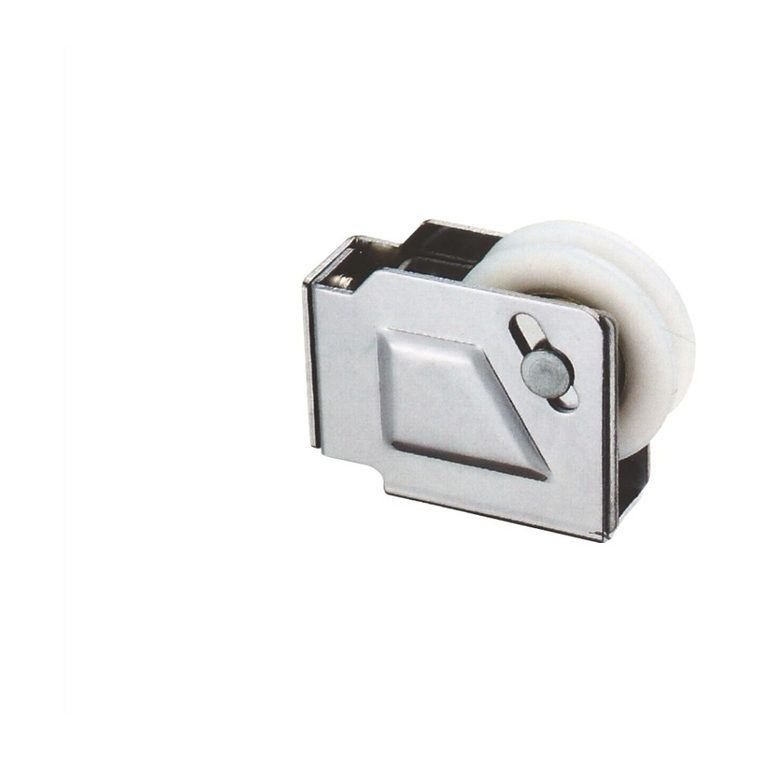

Roller, single wheel
- Size / load
- 55 kg per pair, ±3 mm adjustment
- Used in
- Sliding
- Note
- The TL100 set page prints 45 kg per pair for this roller; confirm the figure for the profile before ordering
Rollers & crescent locks
Sliding windows live or die on the rollers: the catalogue rates them per pair and prints the vertical adjustment range. Crescent locks are handed, so a two-panel window needs both.
Representative models

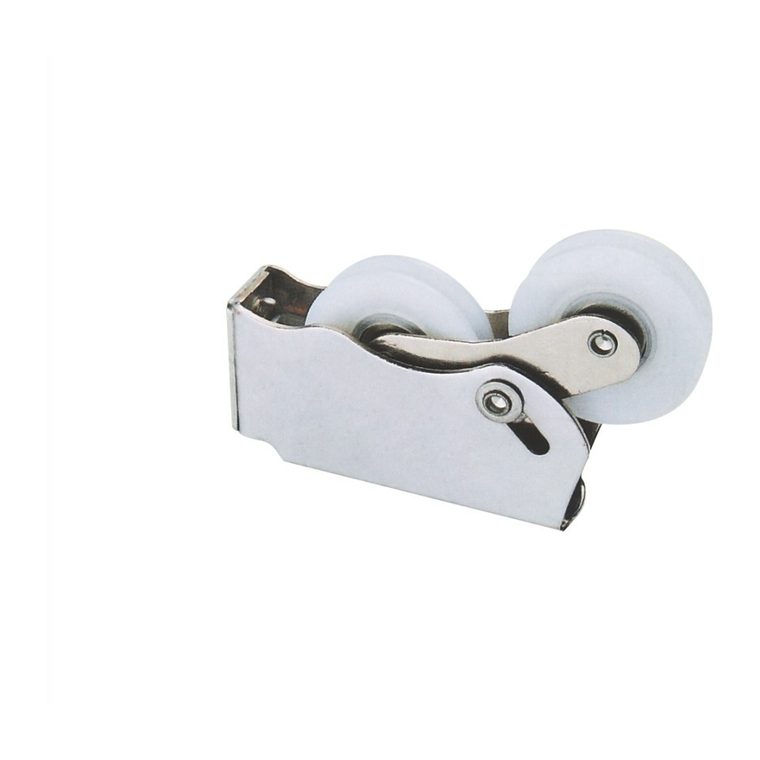

Roller, double wheel
- Size / load
- 110 kg per pair, ±3 mm adjustment
- Used in
- Sliding

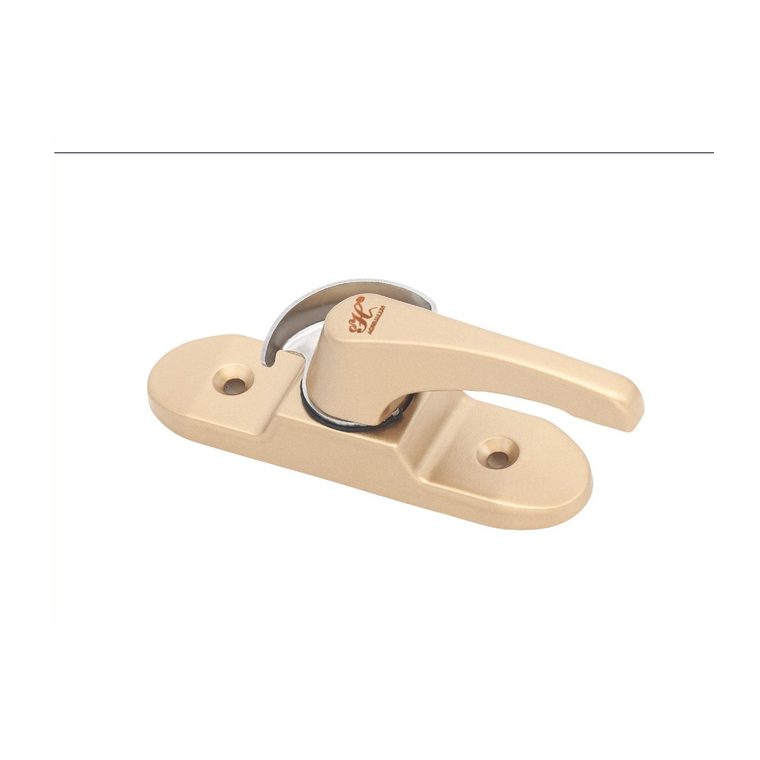

Crescent lock, round base

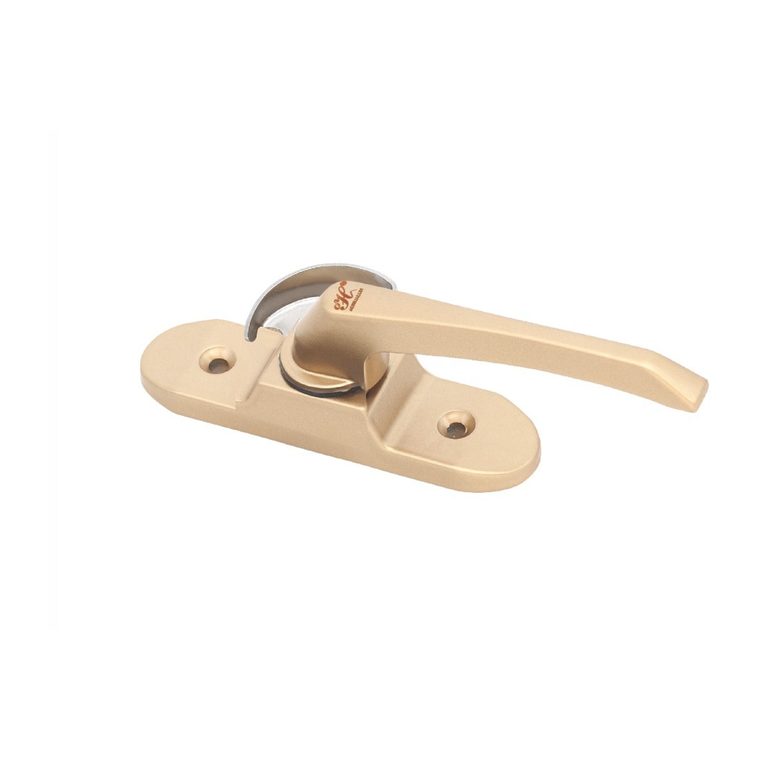

Crescent lock, round base, short
Notes for this range
- Roller loads are per pair, not per roller — a two-sash window uses two pairs.
- The adjustment range is vertical, for levelling the sash after installation.
- Crescent locks are handed; order left and right for a pair of sashes.
Single parts or a whole set
Distributors order by code and quantity; fabricators send the window and take the set. Both are quoted the same way.
