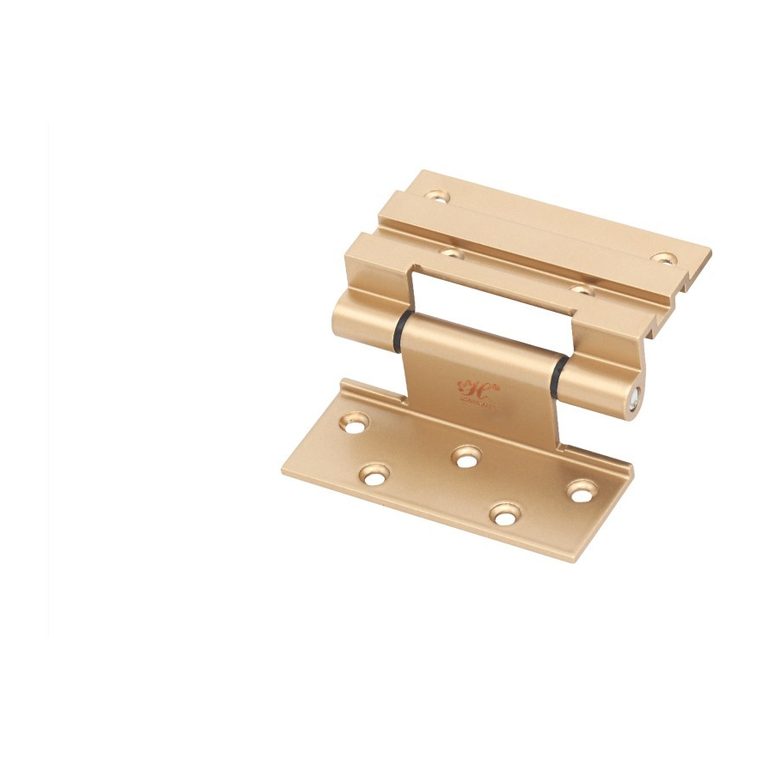

Extended pivot hinge 50F2
- Size / load
- 60 kg per pair
- Used in
- Open-out side-hung, Open-in side-hung
Hinges
Pivot hinges carry the whole weight of the sash, so the load figure matters more than the shape. The catalogue states the maximum load per pair and whether the hinge suits a standard 20 mm notch or a notch-free profile.
Representative models

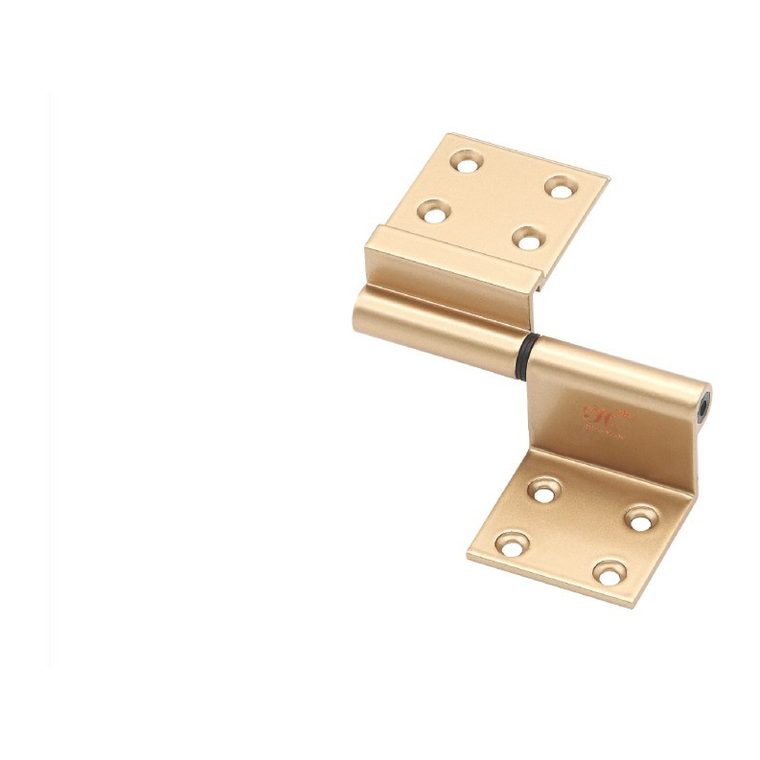

Pivot hinge 38
- Size / load
- 35 kg per pair
- Used in
- Open-out side-hung, Open-in side-hung
Pivot hinge 57A2
- Size / load
- 65 kg per pair
- Used in
- Open-out side-hung, Open-in side-hung

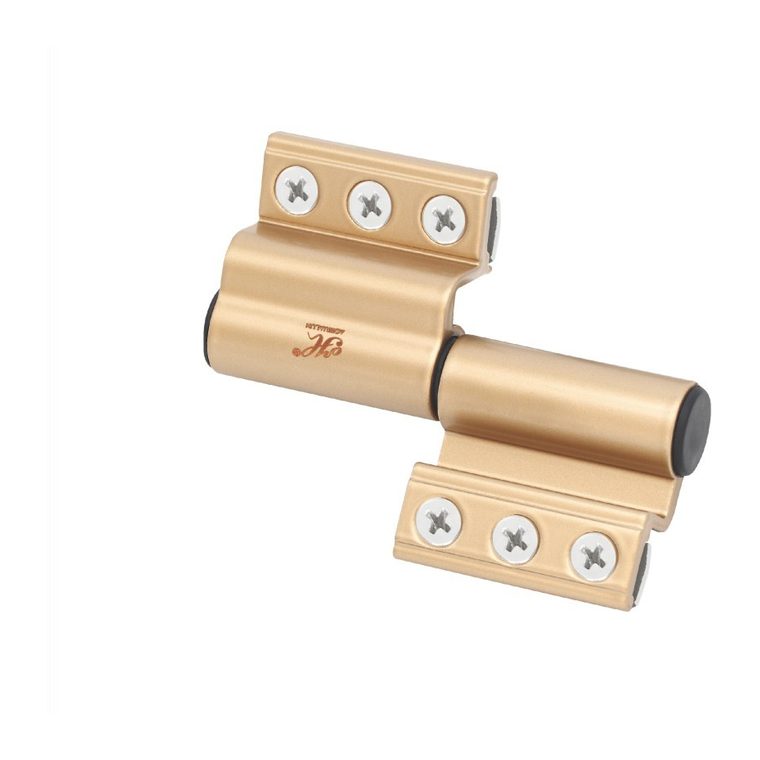

Door hinge, large euro profile
- Size / load
- 110 kg per pair
- Material
- Stainless steel press plate
- Used in
- Side-hung door
Notes for this range
- Load figures are per pair, as printed; installation and profile decide the real capacity.
- Door hinges in the same pages are rated at 110 kg per pair.
- Notch-free (无槽口) and standard 20 mm notch profiles take different hinge bodies.
Used in these window systems
- Open-in Side-hung — NP200 set
- Open-out Side-hung — WK100 set
- Side-hung Door — PM100 set
Single parts or a whole set
Distributors order by code and quantity; fabricators send the window and take the set. Both are quoted the same way.
